Ebmpapst 4650 N 220VAC 119 x 119 x 38 mm Aksiyel Kompakt Fan
1.026,80 TL
109,50 TL den başlayan taksitlerle!
Kategori
Marka
Stok Kodu
4650 N
Fiyat
17,40 EUR + KDV
Havale
996,00 TL
(%3,00 havale indirimi)
Ürün PDF
Technical Description
| Weight | 0,550 kg |
|---|---|

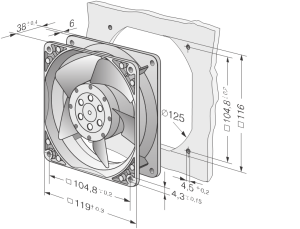

| Dimensions | 119 x 119 x 38 mm |
| Impeller material | Sheet steel, painted black |
| Housing material | Die-cast aluminum |
| Airflow direction | Intake over struts |
| Service life L10 at 40 °C | 37500 h |
| Service life L10 at maximum temperature | 27500 h |
| Option | Versions with reinforced mounting flanges and exposed external leads. |
Nominal data
| Phase | 1~ | |
|---|---|---|
| Type of voltage | AC | |
| Nominal voltage | in V | 230 |
| Frequency | in Hz | 50 |
| Speed | in min-1 | 2650 |
| Power input | in W | 19 |
| Min. ambient temperature | in °C | -10 |
| Max. ambient temperature | in °C | 55 |
| Air flow | in m³/h | 160 |
| Sound power level | in B | 5,4 |
| Sound pressure level | in dB(A) | 46 |
