Ebmpapst 4414 M 24VDC 119 x 119 x 38 mm Aksiyel Kompakt Fan
1.594,48 TL
170,04 TL den başlayan taksitlerle!
Kategori
Marka
Stok Kodu
4414 M
Fiyat
27,40 EUR + KDV
Havale
1.546,65 TL
(%3,00 havale indirimi)
Technical Description
| Weight | 0,250 kg |
|---|---|

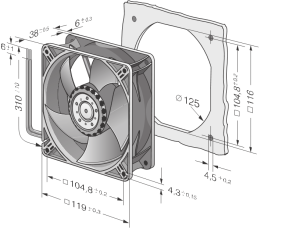

| Dimensions | 119 x 119 x 38 mm |
| Impeller material | Glass-fiber reinforced PA plastic |
| Housing material | Glass-fiber reinforced PBT plastic |
| Airflow direction | Exhaust over struts |
| Service life L10 at 40 °C | 65000 h |
| Service life L10 at maximum temperature | 25000 h |
| Option | Control inputs and alarm and speed signals. |
Nominal data
| Type of voltage | DC | |
|---|---|---|
| Nominal voltage | in V | 24 |
| Nominal voltage range | in V | 18 .. 28 |
| Speed | in min-1 | 3300 |
| Power input | in W | 4,1 |
| Min. ambient temperature | in °C | -20 |
| Max. ambient temperature | in °C | 75 |
| Air flow | in m³/h | 184 |
| Sound power level | in B | 5,3 |
| Sound pressure level | in dB(A) | 42 |
