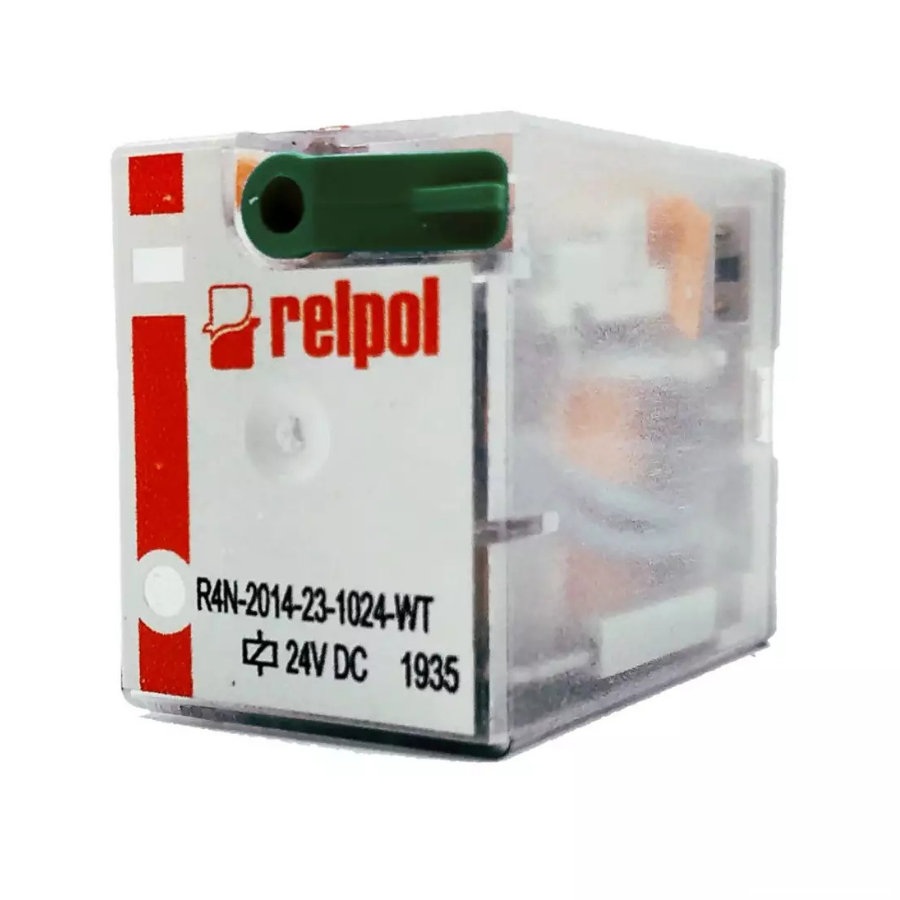

Relpol R4N-2014-23-1024-WT 4 Kontak 7A 24VDC Röle Mekanik Göstergeli Test Butonlu
%40
154,22 TL
257,03 TL
16,45 TL den başlayan taksitlerle!
Kategori
Marka
Stok Kodu
R4N-2014-23-1024-WT
Fiyat
4,38 EUR + KDV
Havale
149,59 TL
(%3,00 havale indirimi)
Görseller Temsilidir !
4 Kutuplu Enversör Kontak, 7 A Termik Akım, 24V DC
Industrial relays R4N-2014-23-1024-WT, 4 CO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 6 A / 250 V AC. Mounting: for plug-in sockets. Cover protection category IP 40.
4 Kutuplu Enversör Kontak, 7 A Termik Akım, 24V DC
Industrial relays R4N-2014-23-1024-WT, 4 CO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 6 A / 250 V AC. Mounting: for plug-in sockets. Cover protection category IP 40.
Technical info
|
Data |
|
|
Index |
A00001 |
|
Type of coil supply |
DC |
|
Coil voltage |
24 V |
|
Contact material |
AgNi |
|
Number and type of contacts |
4P |
|
Rated load AC1 |
6 A / 250 V AC |
|
Rated load DC1 |
6 A / 24 V DC |
|
Rated switching voltage |
250 V AC |
|
Mounting |
do gniazd wtykowych |
|
Depth |
27,5 |
|
Width mm |
21,2 |
|
Height mm |
35,6 |
|
Weight kg |
0,035 |
|
ETIM class |
EC001437 |
