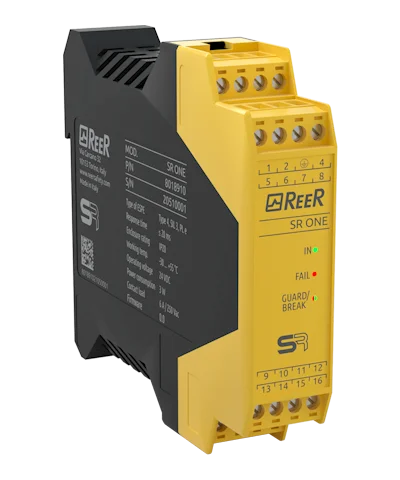

Reer SR ONE 1330900 24V 2NO Güvenlik Rölesi
158.234,10 TL
16.874,35 TL den başlayan taksitlerle!
Marka
Stok Kodu
SR ONE 1330900
Fiyat
2.500,00 EUR + KDV
Havale
153.487,08 TL
(%3,00 havale indirimi)
Safety Interface for Safety Light Curtains and Devices with Solid State Outputs. Screw Terminal Blocks
Safety Interface module for OSSD output devices. Safety light curtains: EOS4 A, EOS2 A, Admiral AD, Admiral AX BK, Vision V
Safety switches: Magnus RFID
Safety laser scanner: UAM
- Guided-contact safety relays
- Start/Restart interlock
- EDM Feedback input for extra external contactors monitoring
| Safety level | Type 4 - PL e |
| Safety level (SIL / PL) | Type 4 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 30 ... 55 |
| Response time (ms) | ≤ 20 |
| Signalling | LEDs indication of power on, connected light curtains status and fault diagnosis |
| Connections | Removable terminal blocks, screw contacts |
| MTTFD (ISO13849) years | The values depend on the type of use. Refer to the technical manual |
| Safety devices to be connected | OSSD outpt devices. Safety light curtains: EOS4 A, EOS2 A, Admiral AD, Admiral AX BK, Vision V. Safety switches: Magnus RFID. Safety laser scanner: UAM |
| Safety relay outputs | 2 NO (6A at 250 VAC) |
| Packaging dimensions HxLxW (mm) | 57 x 158 x 134 |
| Product class | A |
| Custom tariff | 85365080 |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | 99 x 22,5 x 114,5 |
| Degree of protection | IP2X |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
| Gross weight (g) | 186 |
